Model LU-Tilt-Strobe-IPEdition EN · 04 / 2026 · V1Dokument-Nr. LUTSIP-EN-01

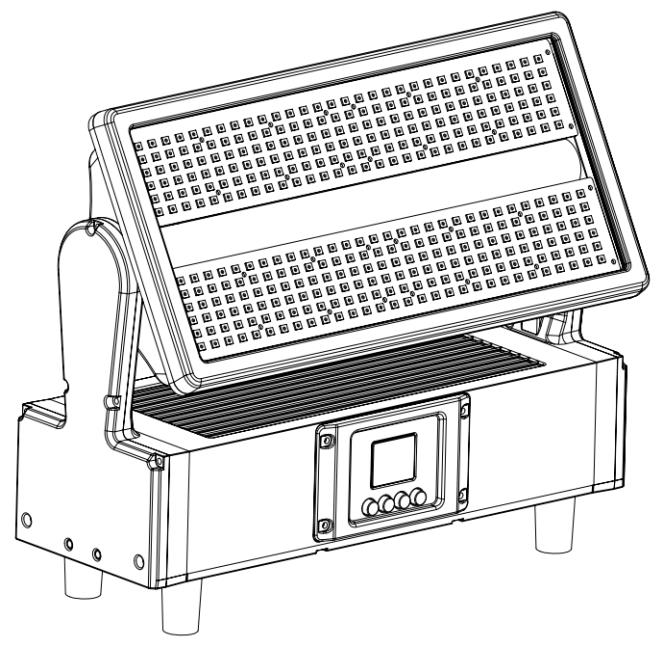

IP65 Tilt Strobe · Wash · Beam 3-in-1

LU-Tilt-Strobe-IP

Weatherproof tilt strobe with 24 × 10 W white LEDs and 24 × 8 W RGBWW 4-in-1 in the middle, 360 × 1 W RGBA 4-in-1 on both sides, 190° tilt and four channel modes

Operating manual. Please read in full before first use and keep for future reference.

Light source

24+24+360W · RGBWW · RGBA

Tilt

190°0,86°/step

DMX channels

26–824 channel modes

IP rating

IP65Outdoor

Foreword

00Welcome

Thank you for choosing the Luminus LU-Tilt-Strobe-IP — a weatherproof effect luminaire integrating wash, beam and strobe in one fixture: 24 × 10 W white LEDs and 24 × 8 W RGBWW 4-in-1 in the middle zone plus 360 × 1 W RGBA 4-in-1 on both side panels, combined with motorized tilt across 190°.

Please keep this user guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet.

0.1Zone Layout

The middle LED beads are divided into 6 zones and the side LED beads into 12 zones. These zones can be addressed individually in the 82-channel mode; in the smaller modes they are controlled as groups.

0.2Scope of Delivery

1 × Luminus LU-Tilt-Strobe-IP
2 × Folding clamps
1 × Power cable (Seetronic IP65)
1 × User manual

Table of Contents

—Overview

01Safety Instructions04
02Technical Specifications05
03Installation06
04Display and Menu07
4.1Manual Operation08
05DMX Channel Charts (4 channel modes, complete)09
5.126-Channel Mode09
5.233-Channel Mode11
5.341-Channel Mode13
5.482-Channel Mode (pixel mode)15
06Attention & Fixture Cleaning17
—CE Compliance Notice18

Chapter 01

01Safety Instructions

Earthing MandatoryIt is essential to ground the yellow/green conductor to earth in order to avoid electric shock. Do not touch any wire during operation as high voltage might cause electric shock. Disconnect main power before replacement or servicing.

Unpack and check carefully that there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of the power supply match the power requirements of the unit.
The unit is for outdoor use (IP65).
The unit must be installed in a location with adequate ventilation, at least 50 cm from adjacent surfaces. Be sure that no ventilation slots are blocked.
Make sure there are no flammable materials close to the unit while operating, as it is a fire hazard.
Use a safety cable when fixing this unit. Do not handle the unit by taking its head only, but always by taking its base.
Maximum ambient temperature is Ta: 40 °C. Do not operate where the temperature is higher than this. Unit surface temperature may reach up to 85 °C. Do not touch the housing bare-handed during operation. Turn off the power and allow about 15 minutes for the unit to cool down before replacing or servicing.
In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit yourself — repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center and always use the same type of spare parts.

WarningTo prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. Do not open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged.

Chapter 02

02Technical Specifications

Light Source & Optics

Light source, middle	24 × 10 W white LED + 24 × 8 W RGBWW 4-in-1
Light source, sides	360 × 1 W RGBA 4-in-1
Color system	W + RGBWW 4-in-1 + RGBA 4-in-1
Lamp life	≥ 50.000 h
Optics	Tempered glass + PMMA high-quality optical light guider
Beam angle	120°
Zones	Middle 6 zones · sides 12 zones
Dimming	Full optical domain dimming, 65,536-level accuracy
Strobe	Fast strobe 1 – 25 Hz
Effects	Wash, beam and strobe 3-in-1 · multiple preset effect macro functions

Movement & Control

Tilt	190°, accuracy 0.86°/step, fine-tuning accuracy 0.0034°; magnetic sensitive response reset system
Protocol	DMX-512 · Master/Slave · Auto Run · Music · RDM
DMX channels	26 / 33 / 41 / 82 CH (datasheet states 24/31/39/82)
Menu display	1.8" TFT color display (datasheet: 2.0"), English/Chinese switchable, display reversible by 180°
Data in/out	3-pin Seetronic sockets IN/OUT

Electrical & Construction

Input voltage	AC 100 – 240 V, 50/60 Hz
Full power	450 W ± 5 %, power factor PF ≥ 0,95 (datasheet: 800 W power supply)
Protection rating	IP65
Working temperature	−10 °C to 45 °C
Cooling	Active, with over-temperature protection
Installation	2 × folding clamp · 1 × safety attachment point

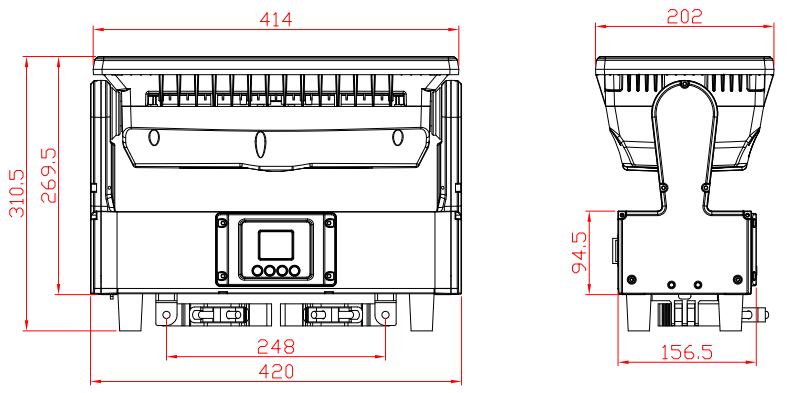

Dimensions	420 × 163 × 347 mm
Weight	12,7 kg net

Chapter 03

03Installation

Fixtures should be fastened on the hooks with screws. Make sure the installation is secure to prevent chattering and slipping during operation.

The structure to which the fixture is attached must be able to support 10 times the weight of the fixture.
When installing the fixture, also always use a safety cable that can hold 12 times the weight of the unit.
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating.
The equipment must be fixed by professionals and must be installed at a place out of the reach of people, where nobody passes by freely.

When Loading or UnloadingBefore opening the cover on which the LED board is installed, the main power supply connected to the device must be cut off.

Chapter 04

04Display and Menu

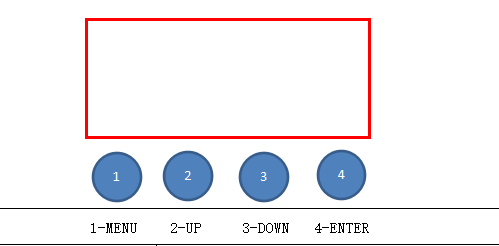

4.1Button Functions

Button	Function
MENU	To select the programming functions
DOWN	To go backward in the selected functions
UP	To go forward in the selected functions
ENTER	To confirm the selected functions

Set DMX address code: Press "MENU" to Set DMX Address and press "ENTER" to enter. The display shows "Set DMX Address — DMX Address:001"; amend the value with the "UP" and "DOWN" keys. "ENTER" saves and exits, "MENU" exits without saving.

4.2Menu Structure

Menu item	Options	Description
Address Setting	001 – 512	DMX start address
Channel	26 / 33 / 41 / 82 Channels	Select the channel mode
Mode	DMX 512 · AUTO · SOUND · Manual · Master/Alone	Set the control mode
MicSense	001 – 100	Sound sensitivity adjustment
Language	English · 中文	Menu language
No Signal	Black Out · Hold	Behaviour when no DMX signal is present
Fan Set	Auto · Low · High	Fan settings
Rever	Tilt Invert YES/NO · Display YES/NO	Tilt forward/reverse setting; display font forward/reverse setting
Reset	Yes · No	Reset the fixture
Default	Yes · No	Restore factory settings
Information	CH Value · Temp · Soft	Show each channel value · temperature of the LED board · software version

4.3Manual Operation (Manual / Master–Alone)

In manual mode all function groups can be set directly at the fixture — without a DMX console. All values in the range 0–255.

No.	Section	Parameter	Value
1	Movement	Tilt	000 – 255
2	Middle 10 W LED	White 1 (middle)	000 – 255
3		LED1 Auto (middle pattern)	000 – 255
4		LED1 Auto Speed (middle pattern white color speed)	000 – 255
5	Middle 8 W LED	Red 2 (middle)	000 – 255
6		Green 2 (middle)	000 – 255
7		Blue 2 (middle)	000 – 255
8		White 2 (middle)	000 – 255
9		LED2 Auto (middle color pattern)	000 – 255
10		LED2 Auto Speed (middle color pattern speed)	000 – 255
11	Both sides	Red 3 (both sides)	000 – 255
12		Green 3 (both sides)	000 – 255
13		Blue 3 (both sides)	000 – 255
14		Amber 3 (both sides)	000 – 255
15		LED3 Auto (both sides color pattern)	000 – 255
16		LED3 Auto Speed (both sides color pattern speed)	000 – 255
17	Effect	Strobe	000 – 255

Chapter 05

05DMX Channel Charts

5.126-Channel Mode (channel 1–14)

CH	Display	Function	Value
1	Tilt — Tilt control		000–255
2	Tilt fine-tuning — Tilt fine-tuning control		000–255
3	Tilt speed — Tilt speed, fast to slow		000–255
4	Dimming — Linear dimming from dark to bright		000–255
5	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
6	Middle 10 W LED — White dimming		000–255
7	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 10 · then reserved	055–059 · 060–255
8	Pattern translation (choose pattern background) (with CH 7)		000–255
9	Pattern auto speed (with CH 7)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
10	Middle 8 W LED — R dimming, dark to bright		000–255
11	G dimming, dark to bright		000–255
12	B dimming, dark to bright		000–255
13	WW dimming, dark to bright		000–255
14	Macro color	No function	000–009
14	Macro color	Macro color	010–255

5.126-Channel Mode (channel 15–26)

CH	Display	Function	Value
15	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 20 · then reserved	105–109 · 110–255
16	Pattern translation (choose pattern background) (with CH 15)		000–255
17	Pattern auto speed (with CH 15)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
18	Both sides — R dimming, dark to bright		000–255
19	G dimming, dark to bright		000–255
20	B dimming, dark to bright		000–255
21	A dimming, dark to bright		000–255
22	Macro color	No function	000–009
22	Macro color	Macro color	010–255
23	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–012
		Dynamic pattern 2	013–015
		… … 3 DMX values per pattern …	…
		Dynamic pattern 45 · then reserved	142–144 · 145–255
24	Pattern translation (choose pattern background) (with CH 23)		000–255
25	Pattern auto speed (with CH 23)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
26	Reset	No	000–250
26	Reset	Reset within 5 s	251–255

5.233-Channel Mode (channel 1–18)

CH	Display	Function	Value
1	Tilt — Tilt control		000–255
2	Tilt fine-tuning — Tilt fine-tuning control		000–255
3	Tilt speed — Tilt speed, fast to slow		000–255
4	Dimming — Linear dimming from dark to bright		000–255
5	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
6	Dimming — Linear dimming from dark to bright		000–255
7	Middle 10 W LED — Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
8	Middle 10 W LED — White dimming		000–255
9	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 10 · then reserved	055–059 · 060–255
10	Pattern translation (choose pattern background) (with CH 9)		000–255
11	Pattern auto speed (with CH 9)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
12	Middle 8 W LED — Dimming		000–255
13	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
14	R dimming, dark to bright		000–255
15	G dimming, dark to bright		000–255
16	B dimming, dark to bright		000–255
17	WW dimming, dark to bright		000–255
18	Macro color	No function	000–009
18	Macro color	Macro color	010–255

5.233-Channel Mode (channel 19–33)

CH	Display	Function	Value
19	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 20 · then reserved	105–109 · 110–255
20	Pattern translation (choose pattern background) (with CH 19)		000–255
21	Pattern auto speed (with CH 19)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
22	Both sides — Dimming		000–255
23	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
24	R dimming, dark to bright		000–255
25	G dimming, dark to bright		000–255
26	B dimming, dark to bright		000–255
27	A dimming, dark to bright		000–255
28	Macro color	No function	000–009
28	Macro color	Macro color	010–255
29	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–012
		Dynamic pattern 2	013–015
		… … 3 DMX values per pattern …	…
		Dynamic pattern 45 · then reserved	142–144 · 145–255
30	Pattern translation (choose pattern background) (with CH 29)		000–255
31	Pattern auto speed (with CH 29)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
32	Dimming mode	No function	000–049
32	Dimming mode	Smooth dimming	050–255
33	Reset	No	000–250
33	Reset	Reset within 5 s	251–255

5.341-Channel Mode (channel 1–25)

CH	Display	Function	Value
1	Tilt — Tilt control		000–255
2	Tilt fine-tuning — Tilt fine-tuning control		000–255
3	Tilt speed — Tilt speed, fast to slow		000–255
4	Dimming — Linear dimming from dark to bright		000–255
5	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
6	Dimming — Linear dimming from dark to bright		000–255
7	Middle 10 W LED — Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
8	Middle 10 W LED — White dimming		000–255
9	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 10 · then reserved	055–059 · 060–255
10	Pattern translation (choose pattern background) (with CH 9)		000–255
11	Pattern auto speed (with CH 9)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
12	Middle 8 W LED — Dimming		000–255
13	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
14	R dimming, dark to bright		000–255
15	G dimming, dark to bright		000–255
16	B dimming, dark to bright		000–255
17	WW dimming, dark to bright		000–255
18	Macro color	No function	000–009
18	Macro color	Macro color	010–255
19	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–014
		Dynamic pattern 2	015–019
		… … 5 DMX values per pattern …	…
		Dynamic pattern 20 · then reserved	105–109 · 110–255
20	Pattern translation (choose pattern background) (with CH 19)		000–255
21	Pattern auto speed (with CH 19)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
22	Pattern background color R (with CH 19)		000–255
23	Pattern background color G (with CH 19)		000–255
24	Pattern background color B (with CH 19)		000–255
25	Pattern background color WW (with CH 19)		000–255

5.341-Channel Mode (channel 26–41)

CH	Display	Function	Value
26	Both sides — Dimming		000–255
27	Strobe	Light up	000–003
		Synchro strobe speed, slow to fast (1 Hz – 25 Hz)	004–203
		Random strobe	204–255
28	R dimming, dark to bright		000–255
29	G dimming, dark to bright		000–255
30	B dimming, dark to bright		000–255
31	A dimming, dark to bright		000–255
32	Macro color	No function	000–009
32	Macro color	Macro color	010–255
33	Dynamic pattern	No effect	000–009
		Dynamic pattern 1	010–012
		Dynamic pattern 2	013–015
		… … 3 DMX values per pattern …	…
		Dynamic pattern 45 · then reserved	142–144 · 145–255
34	Pattern translation (choose pattern background) (with CH 33)		000–255
35	Pattern auto speed (with CH 33)	No function	000–009
		Go forward from fast to slow	010–132
		Go backward from slow to fast	133–255
36	Pattern background color R		000–255
37	Pattern background color G		000–255
38	Pattern background color B		000–255
39	Pattern background color WW		000–255
40	Dimming mode	No function	000–049
40	Dimming mode	Smooth dimming	050–255
41	Reset	No	000–250
41	Reset	Reset within 5 s	251–255

5.482-Channel Mode — pixel mode (channel 1–34)

In the 82-channel mode all zones are addressed individually: 6 white zones of the 10 W LEDs, 6 RGBS zones of the 8 W LEDs (middle) and 12 RGBA zones of the 1 W LEDs (sides). All channels dim linearly from dark to bright.

CH	Display	Function	Value
1	Tilt — Tilt control		000–255
2	Tilt fine-tuning — Tilt fine-tuning control		000–255
3	Tilt speed — Tilt speed, fast to slow		000–255
4	Reset	No	000–250
4	Reset	Reset within 5 s	251–255
5	Middle 10 W LED — W1 dimming		000–255
6	W2 dimming		000–255
7	W3 dimming		000–255
8	W4 dimming		000–255
9	W5 dimming		000–255
10	W6 dimming		000–255
11	Middle 8 W LED — R1 dimming		000–255
12	G1 dimming		000–255
13	B1 dimming		000–255
14	S1 dimming (warm-white segment)		000–255
15	R2 dimming		000–255
16	G2 dimming		000–255
17	B2 dimming		000–255
18	S2 dimming (warm-white segment)		000–255
19	R3 dimming		000–255
20	G3 dimming		000–255
21	B3 dimming		000–255
22	S3 dimming (warm-white segment)		000–255
23	R4 dimming		000–255
24	G4 dimming		000–255
25	B4 dimming		000–255
26	S4 dimming (warm-white segment)		000–255
27	R5 dimming		000–255
28	G5 dimming		000–255
29	B5 dimming		000–255
30	S5 dimming (warm-white segment)		000–255
31	R6 dimming		000–255
32	G6 dimming		000–255
33	B6 dimming		000–255
34	S6 dimming (warm-white segment)		000–255

5.482-Channel Mode — side zones (channel 35–82)

CH	Display	Value
35	Both sides 1 W LED — R1 dimming	000–255
36	G1 dimming	000–255
37	B1 dimming	000–255
38	A1 dimming	000–255
39	R2 dimming	000–255
40	G2 dimming	000–255
41	B2 dimming	000–255
42	A2 dimming	000–255
43	R3 dimming	000–255
44	G3 dimming	000–255
45	B3 dimming	000–255
46	A3 dimming	000–255
47	R4 dimming	000–255
48	G4 dimming	000–255
49	B4 dimming	000–255
50	A4 dimming	000–255
51	R5 dimming	000–255
52	G5 dimming	000–255
53	B5 dimming	000–255
54	A5 dimming	000–255
55	R6 dimming	000–255
56	G6 dimming	000–255
57	B6 dimming	000–255
58	A6 dimming	000–255
59	R7 dimming	000–255
60	G7 dimming	000–255
61	B7 dimming	000–255
62	A7 dimming	000–255
63	R8 dimming	000–255
64	G8 dimming	000–255
65	B8 dimming	000–255
66	A8 dimming	000–255
67	R9 dimming	000–255
68	G9 dimming	000–255
69	B9 dimming	000–255
70	A9 dimming	000–255
71	R10 dimming	000–255
72	G10 dimming	000–255
73	B10 dimming	000–255
74	A10 dimming	000–255
75	R11 dimming	000–255
76	G11 dimming	000–255
77	B11 dimming	000–255
78	A11 dimming	000–255
79	R12 dimming	000–255
80	G12 dimming	000–255
81	B12 dimming	000–255
82	A12 dimming	000–255

Chapter 06

06Attention & Fixture Cleaning

6.1Attention

When the lamp is lit after the fixture is powered on, direct exposure to the light emitted by the LED beads should be avoided as much as possible.
When loading or unloading the fixture, be sure to cut off the main power supply connected to the device before opening the cover on which the LED board is installed.

6.2Fixture Cleaning

The outside of the lens must always be wiped so that the lighting effect is better. The wiping frequency depends on the environment — humidity, excessive smoke and a particularly dirty environment can make the lens dusty.

Use a soft cloth and special glass cleaner.
Wipe the exterior of the lens at least every 30 days.
Use vacuum cleaners or air guns inside the luminaire and clean it at least twice a year.

Appendix

—CE Compliance Notice

The manufacturer declares under its sole responsibility that the LU-Tilt-Strobe-IP complies with the relevant EU harmonization legislation.

Applied EU Directives

2014/35/EU — Low Voltage Directive (LVD)
2014/30/EU — Electromagnetic Compatibility Directive (EMC)
2011/65/EU — RoHS Directive (restriction of hazardous substances)

Applied Harmonized Standards

EN IEC 60598-1 / EN IEC 60598-2-3 — Safety of luminaires (outdoor lighting)
EN 62471 — Photobiological safety of lamps and lamp systems
EN 55015 / EN IEC 61547 / EN IEC 61000-3-2 / EN 61000-3-3 — Electromagnetic compatibility (EMC)

The signed EU Declaration of Conformity is available as a separate document upon request from the manufacturer.
